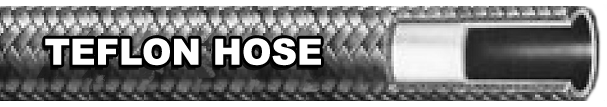

MAIN APPLICATIONS
Pulp & paper, chemical transfer, high temperature hydraulics
CONTINUOUS SERVICE TEMPERATURE RANGE
-65°F / +450°F
-54°C / +230°C
COVER: 304 stainless steel
INNER CORE: PTFE
TYPE APPROVALS: J1402, DOT FMVSS 106AII (3/16″ – 5/8″)
 |
 |
 |
 |
 |
 |
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | Fittings (Crimp) |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | ||
| S-3TWH | N/A | -3 | 3/16″ | – | – | 0.13 | 0.23 | 206.9 | 3000 | – | – | 51 | 2.00 | 74.4 | 0.05 | TW SERIES |
| S-4TWH | N/A | -4 | 1/4″ | – | – | 0.19 | 0.30 | 206.9 | 3000 | – | – | 51 | 2.00 | 89.3 | 0.06 | TW SERIES |
| S-5TWH | N/A | -5 | 5/16″ | – | – | 0.25 | 0.37 | 206.9 | 3000 | – | – | 58 | 2.30 | 104.2 | 0.07 | TW SERIES |
| S-6TWH | N/A | -6 | 3/8″ | – | – | 0.32 | 0.40 | 172.4 | 2500 | – | – | 99 | 3.90 | 133.9 | 0.09 | TW SERIES |
| S-8TWH | N/A | -8 | 1/2″ | – | – | 0.41 | 0.52 | 137.9 | 2000 | – | – | 119 | 4.70 | 171.1 | 0.12 | TW SERIES |
| S-10TWH | N/A | -10 | 5/8″ | – | – | 0.50 | 0.59 | 120.7 | 1750 | – | – | 135 | 5.30 | 223.2 | 0.15 | TW SERIES |
| S-12TWH | N/A | -12 | 3/4″ | – | – | 0.62 | 0.80 | 103.4 | 1500 | – | – | 165 | 6.50 | 334.8 | 0.23 | TW SERIES |
| S-16TWH | N/A | -16 | 1″ | – | – | 0.87 | 1.05 | 69.0 | 1000 | – | – | 198 | 7.80 | 706.9 | 0.48 | TW SERIES |
| S-20TWH | N/A | -20 | 1-1/4″ | – | – | 1.13 | 1.38 | 69.0 | 1000 | – | – | 279 | 11.00 | 870.6 | 0.59 | TW SERIES |
