MAIN APPLICATIONS
Suction lines, return lines
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol
based oils, synthetic ester based oils, oils in aqueous emulsion, water

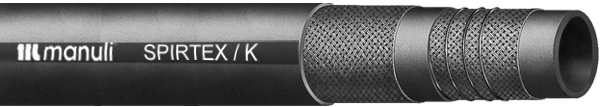

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Two textile reinforcements with steel helical body wire
COVER: Environment resistant synthetic rubber
APPLICABLE SPECS: SAE 100 R4
TYPE APPROVALS: GOST-R
KEY PERFORMANCE
Resistance to vacum – New compact SAE 100 R4 architecture
|
|
|
|
|
|
|
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
|||||||
| DN | dash | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| SPK-10 | 16 | -10 | 5/8″ | 26.0 | 1.02 | 21 | 300 | 64 | 930 | 96 | 3.78 | 590 | 40 | – | MF+M00310-10 |
| SPK-12 | 19 | -12 | 3/4″ | 29.0 | 1.14 | 21 | 300 | 64 | 930 | 96 | 3.78 | 550 | 37 | OPS | MF+M00310-12 |
| SPK-16 | 25 | -16 | 1″ | 35.0 | 1.38 | 17.0 | 250 | 70 | 1010 | 150 | 5.91 | 680 | 46 | OPS | MF+M00310-16 |
| SPK-20 | 31 | -20 | 1-1/4″ | 42.0 | 1.65 | 14 | 200 | 56 | 810 | 200 | 7.87 | 840 | 56 | OPS | MF+M00310-20 |
| SPK-24 | 38 | -24 | 1-1/2″ | 48.5 | 1.91 | 10 | 140 | 42 | 610 | 254 | 10.00 | 1024 | 70 | OPS | MF+M00310-24 |
| SPK-32 | 51 | -32 | 2″ | 61.5 | 2.42 | 7 | 100 | 28 | 410 | 300 | 11.81 | 1420 | 95 | OPS | MF+M00310-32 |
| SPK-40 | 63 | -40 | 2-1/2″ | 76.0 | 2.99 | 4 | 62 | 17 | 250 | 355 | 13.98 | 2150 | 144 | – | MF+M00310-40 |
| SPK-48 | 76 | -48 | 3″ | 88.0 | 3.46 | 4 | 56 | 16 | 230 | 457 | 17.99 | 2850 | 191 | – | MF+M00310-48 |
| SPK-56 | 89 | -56 | 3-1/2″ | 103.0 | 4.06 | 3 | 45 | 12 | 180 | 530 | 20.87 | 3450 | 231 | – | * |
| SPK-64 | 102 | -64 | 4″ | 115.0 | 4.53 | 2 | 35 | 10 | 140 | 610 | 24.02 | 3900 | 261 | – | * |
