MAIN APPLICATIONS
Medium-high pressure lines in heavy duty environmental
conditions, specific installations with severe abrasion conditions,
marine applications, underground and open pit mining
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
MAX. OPERATING TEMPERATURE
(Intermittent service) 257°F / 125°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

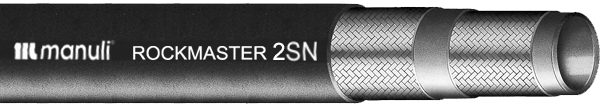

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Two high tensile steel braids
COVER: Synthetic rubber with high ozone, weather
and heat resistance
APPLICABLE SPECS: Exceed EN 853 2SN –
SAE 100 R2AT – ISO 1436-1 2SN/R2AT
TYPE APPROVALS: DNV,DNV MED (DN 5÷16), FRAS, GOST-R, LOBA, MSHA, RINA (DN 38÷51), (DN 8÷51)
KEY PERFORMANCE
Superior abrasion resistance • High ozone and weather resistance • Flame resistance to a wide
range of spec. • Antistatic and antitoxic cover • Over standard pressure resistance
|
|
|
|
|
|
|
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| R2SN-04 | 6 | -4 | 1/4″ | – | – | 14.7 | 0.58 | 400 | 5800 | 1750 | 25370 | 50 | 1.97 | 360 | 24 | OPB | MF+M03400-04 |
| R2SN-05 | 8 | -5 | 5/16″ | – | – | 16.3 | 0.64 | 350 | 5070 | 1480 | 21460 | 60 | 2.36 | 395 | 26 | OPB | MF+M03400-05 |
| R2SN-06 | 10 | -6 | 3/8″ | – | – | 18.7 | 0.74 | 350 | 5070 | 1400 | 20300 | 70 | 2.76 | 505 | 34 | OPB|OPNS | MF+M03400-06 |
| R2SN-08 | 12 | -8 | 1/2″ | – | – | 21.8 | 0.86 | 350 | 5070 | 1400 | 20300 | 89 | 3.50 | 640 | 43 | OPB|OPNS | MF+M03400-08 |
| R2SN-10 | 16 | -10 | 5/8″ | – | – | 25.0 | 0.98 | 250 | 3620 | 1020 | 14790 | 100 | 3.94 | 710 | 48 | OPB|OPNS | MF+M03400-10 |
| R2SN-12 | 19 | -12 | 3/4″ | – | – | 29.0 | 1.14 | 215 | 3110 | 900 | 13050 | 130 | 5.12 | 945 | 63 | OPB|OPNS | MF+M03400-12 |
| R2SN-16 | 25 | -16 | 1″ | – | – | 36.8 | 1.45 | 175 | 2530 | 700 | 10150 | 160 | 6.30 | 1305 | 87 | OPB|OPNS | MF+M03400-16 |
| R2SN-20 | 31 | -20 | 1-1/4″ | – | – | 47.0 | 1.85 | 140 | 2030 | 560 | 8120 | 419 | 16.50 | 1940 | 130 | OPNS | MF+M03400-20 |
| R2SN-24 | 38 | -24 | 1-1/2″ | – | – | 53.4 | 2.10 | 100 | 1450 | 500 | 7250 | 500 | 19.69 | 2245 | 150 | OPNS | MF+M03400-24 |
| R2SN-32 | 51 | -32 | 2″ | – | – | 66.2 | 2.61 | 90 | 1300 | 420 | 6090 | 630 | 24.80 | 3085 | 207 | OPNS | MF+M03400-32 |
