MAIN APPLICATIONS
Medium-high pressure lines with installation constraints in
heavy duty environmental conditions, specific installations with
severe abrasion conditions, marine applications, underground
and open pit mining, return and suction lines
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
MAX. OPERATING TEMPERATURE
(Intermittent service) 257°F / 125°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

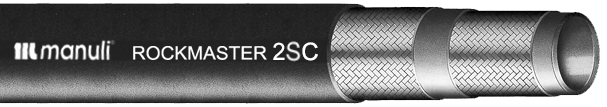

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Two high tensile steel braids
COVER: Synthetic rubber with high ozone, weather
and heat resistance
APPLICABLE SPECS: Exceed EN 857 2SC – ISO 11237-1 2SC, SAE 100 R 16S; in addition: DN 25 SAE 100 R17, ISO 11237-1 R17
TYPE APPROVALS: GOST-R, LOBA (DN 5÷25), LR, MSHA, RINA (DN 6÷31), (DN 8÷25)
KEY PERFORMANCE
Superior abrasion resistance – High ozone and weather resistance – Flame resistance to a wide range of
spec. – Antistatic and antitoxic cover – Working pressure improvement – Range extension to DN 76 –
Vacuum resistance with SAE 100 R4 performance approved on sizes up to DN 76
|
|
|
|
|
|
|
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| R2SC-03 | 5 | -3 | 3/16″ | – | – | 11.5 | 0.45 | 420 | 6090 | 2000 | 29000 | 40 | 1.57 | 215 | 14 | OPB | MF+M03400-03 |
| R2SC-04 | 6 | -4 | 1/4″ | – | – | 13.1 | 0.52 | 400 | 5800 | 1850 | 26820 | 45 | 1.77 | 265 | 18 | OPB | MF+M03400-04 |
| R2SC-05 | 8 | -5 | 5/16″ | – | – | 14.7 | 0.58 | 350 | 5070 | 1700 | 24650 | 55 | 2.17 | 320 | 21 | OPB | MF+M03400-05 |
| R2SC-06 | 10 | -6 | 3/8″ | – | – | 16.8 | 0.66 | 330 | 4780 | 1500 | 21750 | 65 | 2.56 | 390 | 26 | OPB | MF+M03400-06 |
| R2SC-08 | 12 | -8 | 1/2″ | – | – | 20.3 | 0.80 | 275 | 3980 | 1220 | 17690 | 80 | 3.15 | 490 | 33 | OPB | MF+M03400-08 |
| R2SC-10 | 16 | -10 | 5/8″ | – | – | 23.6 | 0.93 | 250 | 3620 | 1050 | 15220 | 90 | 3.54 | 590 | 40 | OPB | MF+M03400-10 |
| R2SC-12 | 19 | -12 | 3/4″ | – | – | 27.6 | 1.09 | 245 | 3550 | 980 | 14210 | 120 | 4.72 | 795 | 53 | OPB | MF+M03400-12 |
| R2SC-16 | 25 | -16 | 1″ | – | – | 35.2 | 1.39 | 210 | 3040 | 840 | 12180 | 150 | 5.91 | 1160 | 78 | OPB | MF+M03400-16 |
| R2SC-20 | 31 | -20 | 1-1/4″ | – | – | 43.6 | 1.72 | 140 | 2030 | 560 | 8120 | 250 | 9.84 | 1555 | 104 | OPNS | MF+M03400-20 |
| R2SC-24 | 38 | -24 | 1-1/2″ | – | – | 50.7 | 2.00 | 100 | 1450 | 400 | 5800 | 300 | 11.81 | 1845 | 124 | OPNS | MF+M03400-24 |
| R2SC-32 | 51 | -32 | 2″ | – | – | 63.4 | 2.50 | 90 | 1300 | 360 | 5220 | 400 | 15.75 | 2375 | 159 | OPNS | MF+M03400-32 |
| R2SC-40 | 63 | -40 | 2-1/2″ | – | – | 76.0 | 2.99 | 70 | 1010 | 300 | 4350 | 760 | 29.92 | 2955 | 198 | – | MF+M03400-40 |
| R2SC-48 | 76 | -48 | 3″ | – | – | 90.5 | 3.56 | 45 | 650 | 180 | 2610 | 900 | 35.43 | 3155 | 211 | – | MF+M03400-48 |
