MAIN APPLICATIONS
Heavy duty power lines, hydrostatic transmissions,
in heavy duty environmental conditions, specific
installations with severe abrasion conditions, marine
applications, underground and open pit mining
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C
MAX. OPERATING TEMPERATURE
(Intermittent service) 257°F / 125°C
RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils (up to 212°F 100°C), glycols and polyglycols, mineral oils in aqueous emulsion, water

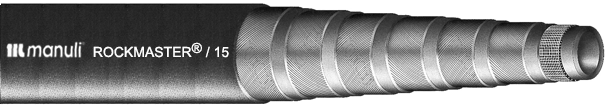

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Four high tensile steel spirals (DN 19÷25). Six high tensile steel spirals (DN 31÷38)
COVER: Synthetic rubber with high ozone, weather and heat resistance
APPLICABLE SPECS: Exceed SAE 100 R15 – ISO 3862-1 R15
TYPE APPROVALS: ABS, BV, BV (MED), DNV, FRAS, GL, GOST-R, LOBA, LR, MSHA
KEY PERFORMANCE
Approved at 1.000.000 flexing impulse cycles (MF2000® fittings) – Superior abrasion resistance –
High ozone and weather resistance – Flame resistance to a wide range of spec. – Antistatic and
antitoxic cover – biological and mineral oils compatibility
|
|
|
|
|
|
|
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| R15-12 | 19 | -12 | 3/4″ | – | – | 31.0 | 1.22 | 420 | 6090 | 1750 | 25370 | 265 | 10.43 | 1430 | 96 | OPS | IL+M01500-12 |
| R15-16 | 25 | -16 | 1″ | – | – | 38.1 | 1.50 | 420 | 6090 | 1750 | 25370 | 267 | 10.51 | 2040 | 137 | OPS | IL+M01500-16 |
| R15-20 | 31 | -20 | 1-1/4″ | – | – | 49.5 | 1.95 | 420 | 6090 | 1680 | 24360 | 267 | 10.51 | 3670 | 246 | OPS | IL+M01600-20 |
| R15-24 | 38 | -24 | 1-1/2″ | – | – | 57.5 | 2.26 | 420 | 6090 | 1680 | 24360 | 315 | 12.40 | 4720 | 317 | OPS | IL+M01600-24 |
