MAIN APPLICATIONS
High pressure power lines in heavy duty environmental
conditions, specific installations with severe abrasion
conditions, marine applications, underground and open
pit mining
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +250°F
-40°C / +121°C
MAX. OPERATING TEMPERATURE
(Intermittent service) 257°F / 125°C
RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils
(up to 212°F 100°C), glycols and polyglycols, mineral oils
in aqueous emulsion, water

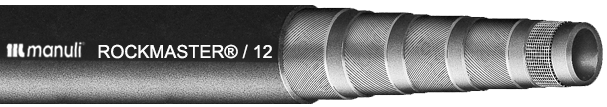

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Four high tensile steel spirals
COVER: Synthetic rubber with high ozone, weather and heat resistance
APPLICABLE SPECS: Exceed EN 856 R12 –
SAE 100 R12 – ISO 3862-1 R12
TYPE APPROVALS: ABS, BV, BV (MED), FRAS, GOST-R, LR, MSHA
KEY PERFORMANCE
Approved at1.000.000 impulse cycles (MF2000® fittings) – Superior abrasion resistance – High
ozone and weather resistance – Flame resistance to a wide range of spec. – Antistatic and antitoxic
cover – biological and mineral oils compatibility
|
|
|
|
|
|
|
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| R12-06 | 10 | -6 | 3/8″ | – | – | 20.0 | 0.79 | 280 | 4060 | 1600 | 23200 | 100 | 3.94 | 620 | 42 | OPS|OPNS | MF+M00910-06 |
| R12-08 | 12 | -8 | 1/2″ | – | – | 23.5 | 0.93 | 280 | 4060 | 1350 | 19570 | 125 | 4.92 | 760 | 51 | OPS|OPNS | MF+M00910-08 |
| R12-10 | 16 | -10 | 5/8″ | – | – | 27.1 | 1.07 | 280 | 4060 | 1300 | 18850 | 140 | 5.51 | 990 | 66 | OPS|OPNS | MF+M00910-10 |
| R12-12 | 19 | -12 | 3/4″ | – | – | 30.4 | 1.20 | 280 | 4060 | 1300 | 18850 | 150 | 5.91 | 1175 | 79 | OPS|OPNS | MF+M00910-12 |
| R12-16 | 25 | -16 | 1″ | – | – | 37.5 | 1.48 | 280 | 4060 | 1150 | 16670 | 225 | 8.86 | 1690 | 114 | OPS|OPNS | MF+M00910-16 |
| R12-20 | 31 | -20 | 1-1/4″ | – | – | 45.9 | 1.81 | 210 | 3040 | 1000 | 14500 | 250 | 9.84 | 2270 | 152 | OPS|OPNS | MF+M00910-20 |
| R12-24 | 38 | -24 | 1-1/2″ | – | – | 53.3 | 2.10 | 175 | 2530 | 1000 | 14500 | 500 | 19.69 | 3120 | 210 | OPS|OPNS | MF+M00910-24 |
| R12-32 | 51 | -32 | 2″ | – | – | 66.7 | 2.63 | 175 | 2530 | 800 | 11600 | 630 | 24.80 | 4420 | 296 | OPS|OPNS | MF+M00910-32 |
