MAIN APPLICATIONS
Medium pressure lines with installation constraints
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycols and polyglycolbased oils, synthetic ester based oils, oils in aqueous emulsion, water

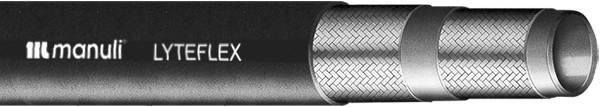

INSERT: MF2000® – MULTIFIT TYPE
TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Two high tensile steel braids
COVER: Environment resistant synthetic rubber
APPLICABLE SPECS: SAE 100 R16 – ISO 11237-1 R16; in addition: DN 16, 19 SAE 100 R17 – ISO 11237-1 R17
TYPE APPROVALS: GOST-R, LR
KEY PERFORMANCE
SAE 100 R2 pressure rating – Lightness and flexibility
|
|
|
|
|
|
|
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| H01084006 | 6 | 4 | 1/4″ | 11.6 | 0.46 | 13.2 | 0.52 | 350 | 5070 | 1400 | 20300 | 50 | 1.97 | 265 | 0.18 | OPB | MF+M03400-04 |
| H01084008 | 8 | 5 | 5/16″ | 12.9 | 0.51 | 14.5 | 0.57 | 297 | 4300 | 1190 | 17250 | 55 | 2.17 | 290 | 0.19 | OPB | MF+M03400-05 |
| H01084010 | 10 | 6 | 3/8″ | 15.4 | 0.61 | 17.0 | 0.67 | 280 | 4060 | 1120 | 16240 | 63 | 2.48 | 385 | 0.26 | OPB | MF+M03400-06 |
| H01804012 | 12 | 8 | 1/2″ | 18.5 | 0.73 | 20.3 | 0.80 | 245 | 3550 | 980 | 14210 | 88 | 3.46 | 465 | 0.31 | OPB | MF+M03400-08 |
| H01084016 | 16 | 10 | 5/8″ | 22.2 | 0.87 | 24.0 | 0.94 | 210 | 3040 | 840 | 12180 | 100 | 3.94 | 630 | 0.42 | OPB | MF+M03400-10 |
| H01084019 | 19 | 12 | 3/4″ | 25.6 | 1.01 | 27.7 | 1.09 | 210 | 3040 | 840 | 12180 | 120 | 4.72 | 790 | 0.53 | OPB | MF+M03400-12 |
| H01084025 | 25 | 16 | 1″ | 32.3 | 1.27 | 34.6 | 1.36 | 140 | 2030 | 560 | 8120 | 150 | 5.91 | 1090 | 0.73 | OPB | MF+M03400-16 |
