MAIN APPLICATIONS
Jacking systems
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +121°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol
based oils, synthetic ester based oils, oils in aqueous emulsion,
water

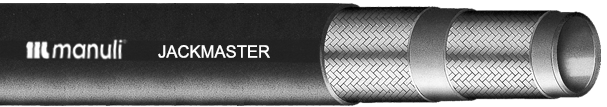

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Two high tensile steel braids
COVER: Environment resistant synthetic rubber
APPLICABLE SPECS: IJ100 hydraulic jack spec.
TYPE APPROVALS: GOST-R
KEY PERFORMANCE
Weight-lifting by means of jacking system • Extreme static pressure • Tested /approved for specific
jacking applications • Test certificate available upon request
 |
 |
 |
 |
 |
 |
 |
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| J-04 | 6 | -4 | 1/4″ | – | – | 14.7 | 0.58 | 725 | 10500 | 1450 | 21025 | 100 | 3.94 | 360 | 24 | OPB | MF+M03400-04 |
| J-06 | 10 | -6 | 3/8″ | – | – | 16.8 | 0.66 | 725 | 10500 | 1450 | 21025 | 127 | 5.00 | 395 | 26 | OPB | MF+M03400-06 |
