MAIN APPLICATIONS
High pressure lines with installation constraints in severe OEM applications
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / + 250°F
-40°C / + 121°C
MAX OPERATING TEMPERATURE
+275°F +125°C
RECOMMENDED FLUIDS
Mineral oils, vegetable oils and synthetic ester based oils (up to +212°F / +100°C), glycols and polyglycols, mineral oils in aqueous emulsion,water

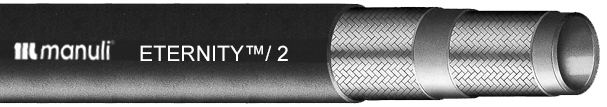

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: Two high tensile steel braids
COVER: Synthetic rubber with high ozone, abrasion, and weather resistance
APPLICABLE SPECS: Exceed EN 857 2SC, SAE 100 R16S and ISO 11237 2SC
TYPE APPROVALS: DNV, DNV (MED), GOST-R, MSHA, LOBA
KEY PERFORMANCE>
The Hi-Performance solution for toughest OEM • Performance far exceeds EN 857-2SC • Improved impulse and service life duration • High temperature and environmental resistance •
Enhanced flex impluse resistance with M00120 skive ferrule
|
|
|
|
|
 |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | FITTING | ||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | ||
| E2-04 | 6 | -4 | 1/4″ | 11,3 | 0,44 | 13,1 | 0,52 | 450 | 6520 | 1800 | 26100 | 45 | 1,77 | 275 | 0,18 | MF+M00120-04 |
| E2-05 | 8 | -5 | 5/16″ | 12,9 | 0,50 | 14,7 | 0,58 | 400 | 5800 | 1600 | 23200 | 55 | 2,17 | 325 | 0,22 | MF+M00120-05 |
| E2-06 | 10 | -6 | 3/8″ | 15,0 | 0,59 | 16,8 | 0,66 | 365 | 5290 | 1460 | 21170 | 65 | 2,56 | 390 | 0,26 | MF+M00120-06 |
| E2-08 | 12 | -8 | 1/2″ | 18,6 | 0,73 | 20,4 | 0,80 | 350 | 5070 | 1400 | 20300 | 80 | 3,15 | 560 | 0,38 | MF+M00120-08 |
| E2-10 | 16 | -10 | 5/8″ | 22,7 | 0,89 | 24,7 | 0,97 | 300 | 4350 | 1200 | 17400 | 90 | 3,54 | 730 | 0,49 | MF+M00120-10 |
| E2-12 | 19 | -12 | 3/4″ | 27,1 | 1,07 | 29,3 | 1,15 | 300 | 4350 | 1200 | 17400 | 120 | 4,72 | 1070 | 0,72 | MF+M00120-12 |
| E2-16 | 25 | -16 | 1″ | 33,7 | 1,33 | 35,9 | 1,41 | 275 | 3260 | 900 | 13050 | 160 | 6,30 | 1340 | 0,90 | MF+M00120-16 |
