MAIN APPLICATIONS
Low-medium pressure lines, return lines
CONTINUOUS SERVICE TEMPERATURE RANGE
-40°F / +212°F
-40°C / +100°C
RECOMMENDED FLUIDS
Mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion, water

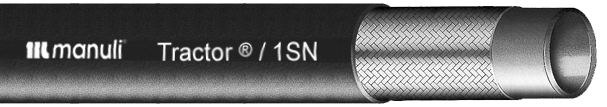

TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One high tensile steel braid
COVER: Environment resistant synthetic rubber
APPLICABLE SPECS: EN 853 1SN – SAE 100 R1AT – ISO 1436 1SN/R1AT
TYPE APPROVALS: ABS, BV (DN 5÷51), DNV, FRAS (DN 5÷12), GL, (DN 5÷51), GOST-R, KSR, LR, MSHA
KEY PERFORMANCE
EN/DIN rated working pressure – Smooth cover FRAS approved (DN 5÷12)
 |
 |
 |
 |
 |
 |
 |
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PART REF. | HOSE SIZE | R.O.D. | O.D. | MAX W.P. | BURST PRESSURE |
MIN. BEND RADIUS |
WEIGHT | MF3000 FITTING |
MF2000 FITTING |
||||||||
| DN | dash | inch | mm | inch | mm | inch | bar | psi | bar | psi | mm | inch | g/m | lb/ft | |||
| T1SN-03 | 5 | -3 | 3/16″ | 9.5 | 0.37 | 11.5 | 0.45 | 250 | 3620 | 1000 | 14500 | 89 | 3.50 | 185 | 0.12 | – | MF+M03400-03 |
| T1SN-04 | 6 | -4 | 1/4″ | 11.2 | 0.44 | 13.2 | 0.52 | 225 | 3260 | 900 | 13050 | 100 | 3.94 | 220 | 0.15 | OPB | MF+M03400-04 |
| T1SN-05 | 8 | -5 | 5/16″ | 12.8 | 0.50 | 14.8 | 0.58 | 215 | 3110 | 850 | 12320 | 114 | 4.49 | 270 | 0.18 | OPB | MF+M03400-05 |
| T1SN-06 | 10 | -6 | 3/8″ | 15.1 | 0.59 | 17.1 | 0.67 | 180 | 2610 | 720 | 10440 | 127 | 5.00 | 340 | 0.23 | OPB | MF+M03400-06 |
| T1SN-08 | 12 | -8 | 1/2″ | 18.1 | 0.71 | 20.1 | 0.79 | 160 | 2320 | 640 | 9280 | 178 | 7.01 | 400 | 0.27 | OPB | MF+M03400-08 |
| T1SN-10 | 16 | -10 | 5/8″ | 21.3 | 0.84 | 23.3 | 0.92 | 130 | 1880 | 520 | 7540 | 200 | 7.87 | 490 | 0.33 | OPB | MF+M03400-10 |
| T1SN-12 | 19 | -12 | 3/4″ | 25.3 | 1.00 | 27.3 | 1.07 | 105 | 1520 | 420 | 6090 | 240 | 9.45 | 610 | 0.41 | OPB | MF+M03400-12 |
| T1SN-16 | 25 | -16 | 1″ | 33.1 | 1.30 | 35.1 | 1.38 | 88 | 1270 | 350 | 5070 | 300 | 11.81 | 920 | 0.62 | OPB | MF+M03400-16 |
| T1SN-20 | 31 | -20 | 1-1/4″ | 40.6 | 1.60 | 43.3 | 1.70 | 63 | 910 | 250 | 3620 | 419 | 16.50 | 1260 | 0.85 | OPNS | MF+M03400-20 |
| T1SN-24 | 38 | -24 | 1-1/2″ | 47.0 | 1.85 | 49.7 | 1.96 | 50 | 720 | 200 | 2900 | 500 | 19.69 | 1470 | 0.99 | OPNS | MF+M03400-24 |
| T1SN-32 | 51 | -32 | 2″ | 60.4 | 2.38 | 63.1 | 2.48 | 40 | 580 | 160 | 2320 | 630 | 24.80 | 2040 | 1.37 | OPNS | MF+M03400-32 |
